Motor roller
DRM F130 SSP Motorized Sheet Metal Roller
€5,561.99*
Durston DRM F130 Single Motorized Roller, Flat Roller with 220 V Electric Drive
The DRM F130 Single from Durston Tools is a motor-driven flat roller for rolling sheet metal. It is based on the proven DRM series and is designed for professional use in goldsmith workshops and manufacturing facilities. The frame is made of cast iron, ensuring high stability and rigidity.
The main rollers are designed as pure flat rollers and provide a continuous rolling surface across the entire width of 130 mm. Sheet metal up to 6 mm thick can be rolled. The side roller extensions come standard with four half-round grooves measuring 4 mm, 3 mm, 2 mm, and 1.5 mm, for example, for the production of ring bands. Additional extension rollers with other profiles are available as an option.
The electric motor is designed for continuous operation. The rolling speed is infinitely variable from 5 to 20 rpm, and operation is very quiet. The rollers are induction-hardened to 64 HRC, with a hardening depth of 6 mm on the roller body. This ensures a particularly long service life.
Safety features include an emergency stop switch, safety bars on the front and rear of the roller, and protective covers over the extension rollers and the upper gear drive.
The roller should be mounted on a suitable base frame with sufficient load-bearing capacity. For larger cross-sectional reductions, it is recommended to anneal the material between individual rolling passes.
Technical Specifications:
- Model: Durston DRM F130 Single
- Series: DRM Powered
- Design: motor-driven flat roller, single-sided (semicircular via side extensions)
- Drive: electric motor, suitable for continuous operation
- Voltage: 220 V
- Motor power: 1.1 kW
- CE marking: yes
- Speed: continuously adjustable, 5 to 20 rpm
- Roll diameter: 65 mm
- Roll width: 130 mm
- Flat rolling range: 130 mm (full roller width)
- Max. sheet thickness: 6 mm
- Side extensions: 4 half-round grooves in 4 / 3 / 2 / 1.5 mm
- Frame: Cast iron
- Rollers: Induction-hardened, 64 HRC, hardening depth 6 mm
- Safety: Emergency stop switch, safety bars at the front and rear, protective covers over extension rollers and gear drive
- Dimensions (L x W x H): 500 x 390 x 540 mm
- Weight: approx. 130 kg
- Manufacturer: Durston Tools, made in the UK
DRM130 Double Durston Twin-Engine Combination Roller
€7,986.99*
Durston DRM 130 Double Motorized Roller, Combination Roller with 220 V Electric Drive

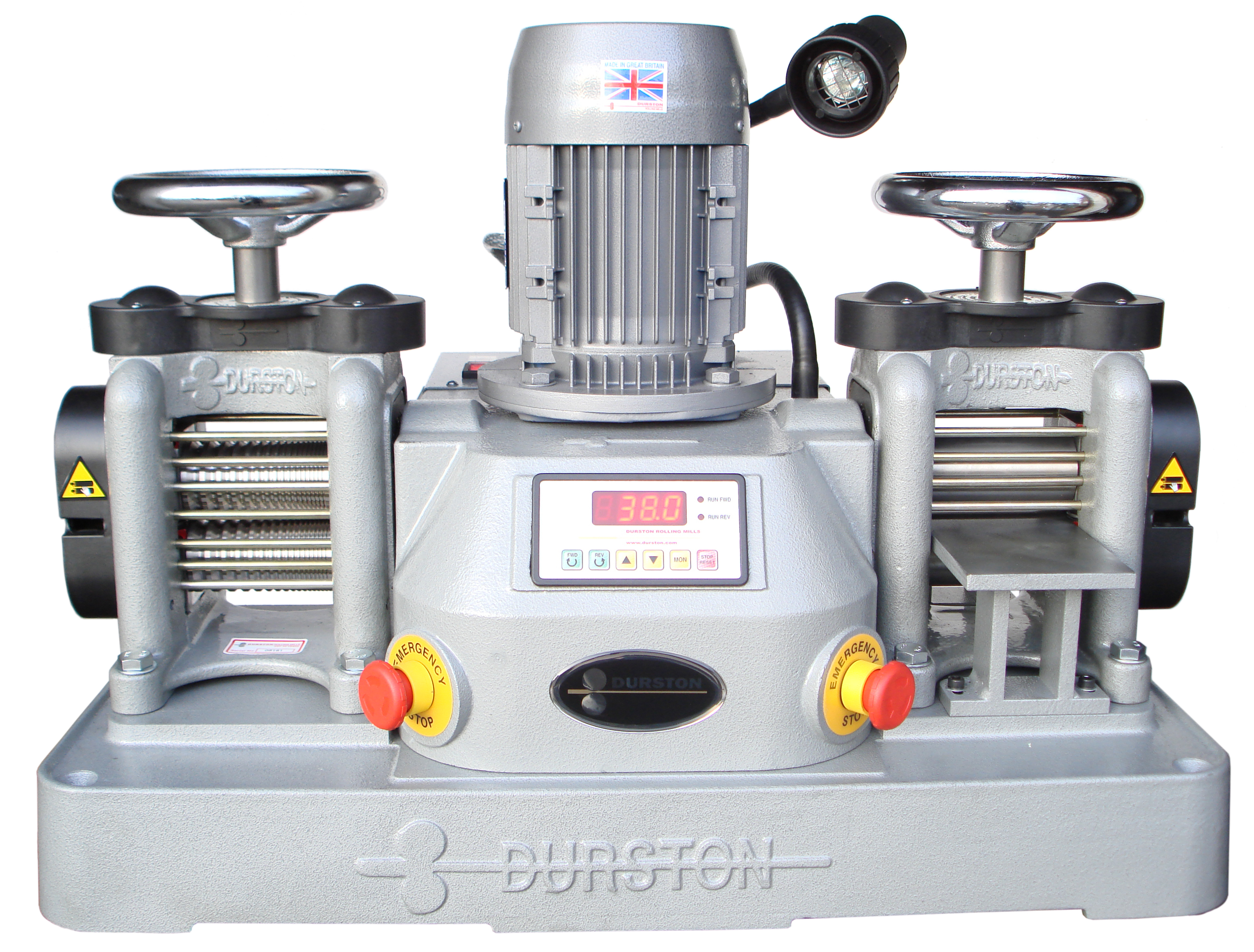

The DRM 130 Double from Durston Tools is a motor-driven double roller with two roller heads on a single machine. The left roller head is equipped with plain flat rollers, while the right roller head features grooved rollers for square wire. This allows sheet metal and wire to be rolled on a single machine without the need for retooling. It is based on the proven DRM series and is designed for professional use in workshops, manufacturing facilities, and training centers.
The flat rollers provide a continuous rolling surface across the entire width of 130 mm for sheet metal up to 6 mm thick. The wire rollers feature 19 square wire grooves ranging from 10 mm to 1 mm. Two standard sets of extension rolls on both sides provide a total of 7 half-round profiles in 8, 6, 4, 3, 3, 2, and 1.5 mm, for example, for the production of ring rails. Additional extension rolls are available as options.
The 1.1 kW electric motor is designed for continuous operation. The speed is infinitely variable, the direction of rotation can be switched between forward and reverse, and operation is very quiet. The frame is made of cast iron and ensures high stability and rigidity. The rollers are induction-hardened to 64 HRC; the flat rollers have a hardening depth of 6 mm.
Safety features include two emergency stop switches, safety bars at the front and rear, and protective covers over the extension rollers at both ends as well as over the upper gears.
The rolling mill should be mounted on a suitable base frame with sufficient load-bearing capacity. For larger cross-sectional reductions, it is recommended to anneal the material between individual rolling passes.
Technical Specifications:- Model: Durston DRM 130 Double- Series: DRM Powered- Configuration: motor-driven double roller with flat roller head and wire roller head
- Drive: Electric motor, suitable for continuous operation- Motor power: 1.1 kW- Voltage: 220 V- Speed: Continuously variable, forward and reverse- Roll diameter: 65 mm
- Roller width: 130 mm per roller head- Flat rolling range: 130 mm (full roller width)- Max. sheet thickness: 6 mm- Max. wire thickness: 10 mm
- Square wire grooves: 19 grooves, 10 mm to 1 mm- Side extensions: 7 half-round profiles in 8 / 6 / 3 mm and 4 / 3 / 2 / 1.5 mm
- Frame: Cast iron- Rollers: Induction-hardened, 64 HRC, hardening depth of flat rollers 6 mm- Safety: 2 emergency stop switches, safety bars at the front and rear, protective covers over extension rollers and gears
- CE marking: Yes- Dimensions (L x W x H): 830 x 390 x 540 mm- Weight: approx. 180 kg- Manufacturer: Durston Tools, manufactured in the United Kingdom
Durston DRM W130 SSP Motorized Wire Roller
€4,899.99*
Durston DRM W130 Single Motorized Wire Rolling Machine, 220 VThe DRM W130 Single from Durston Tools is a motorized wire rolling machine designed for rolling square wire. It is based on the proven DRM series and is designed for professional use in goldsmith workshops and manufacturing facilities. The frame is made of cast iron, ensuring high stability and rigidity.
The main rollers feature 19 square wire grooves ranging from 10 mm to 1 mm across their entire 130 mm width. This provides a finely graded selection of wire gauges for the production of square wire. The side roller extensions come standard with 4 half-round grooves in 4 mm, 3 mm, 2 mm, and 1.5 mm, for example, for the production of ring bands. Additional extension rollers with other profiles are available as an option.
The 1.1-kW electric motor is designed for continuous operation. The rolling speed is continuously adjustable from 5 to 20 rpm, and operation is very quiet. The rollers are induction-hardened to 64 HRC, ensuring a particularly long service life.
Safety features include an emergency stop switch, safety bars on the front and back of the roller, and protective covers over the extension rollers and the upper gear drive.
The rolling mill should be mounted on a suitable base frame with sufficient load-bearing capacity. For larger cross-sectional reductions, it is recommended to anneal the material between individual rolling passes.
Technical Specifications:- Model: Durston DRM W130 Single- Series: DRM Powered- Design: motor-driven wire rolling mill, single-sided (semicircular via side extensions)
- Drive: Electric motor, suitable for continuous operation- Motor power: 1.1 kW- Voltage: 220 V- Speed: Continuously adjustable, 5 to 20 rpm- Roll diameter: 65 mm
- Roller width: 130 mm- Square wire grooves: 19 grooves, 10 mm to 1 mm- Side extensions: 4 half-round grooves in 4 / 3 / 2 / 1.5 mm
- Frame: cast iron- Rollers: induction-hardened, 64 HRC- Safety: emergency stop switch, safety guards at the front and rear, protective covers over extension rollers and gear drive- CE marking: yes
- Dimensions (L x W x H): 500 x 390 x 540 mm- Weight: approx. 130 kg- Manufacturer: Durston Tools, made in the UK
Kombi-Motorwalze DRM C130 SSP Durston
€5,561.99*
Durston DRM C130 Single Motorized Rolling Mill, Combination Rolling Mill with 220 V Electric DriveThe DRM C130 Single from Durston Tools is a motorized combination rolling mill for rolling sheet metal and square wire. It is based on the proven DRM series and is designed for professional use in goldsmith workshops and manufacturing facilities. The frame is made of cast iron, ensuring high stability and rigidity.
The main rollers are designed as combination rollers and feature a flat section for rolling sheet metal and patterns, along with 11 square wire grooves ranging from 8 mm to 1 mm. Sheet metal up to 6 mm thick can be rolled, and wire up to 8 mm. The side roller extensions come standard with 4 half-round grooves in 4 mm, 3 mm, 2 mm, and 1.5 mm, for example, for the production of ring rails. Additional extension rollers with other profiles are available as an option.
The 1.1-kW electric motor is designed for continuous operation. The rolling speed is continuously adjustable from 5 to 20 rpm, and operation is very quiet. The rollers are induction-hardened to 64 HRC, with a hardening depth of 6 mm on the roller body. This ensures a particularly long service life.
Safety features include an emergency stop switch, safety bars on the front and rear of the roller, and protective covers over the extension rollers and the upper gears.
The roller should be mounted on a suitable base frame with sufficient load-bearing capacity. For significant reductions in cross-section, it is recommended to anneal the material between individual rolling passes.Technical Specifications:- Model: Durston DRM C130 Single
- Series: DRM Powered- Design: motor-driven combination roller, single-sided (flat, square, half-round via side extensions)- Drive: electric motor, suitable for continuous operation- Motor power: 1.1 kW
- Voltage: 220 V- Speed: continuously variable, 5 to 20 rpm- Roll diameter: 65 mm- Roll width: 130 mm- Max. sheet thickness: 6 mm
- Max. wire thickness: 8 mm- Square wire grooves: 11 grooves, 8 mm to 1 mm- Side extensions: 4 half-round grooves in 4 / 3 / 2 / 1.5 mm
- Frame: Cast iron- Rollers: Induction-hardened, 64 HRC, hardening depth 6 mm- Safety: Emergency stop switch, safety bars at the front and rear, protective covers over extension rollers and gears
- CE marking: yes- Dimensions (L x W x H): 500 x 390 x 540 mm- Weight: approx. 130 kg- Manufacturer: Durston Tools, made in the UK
