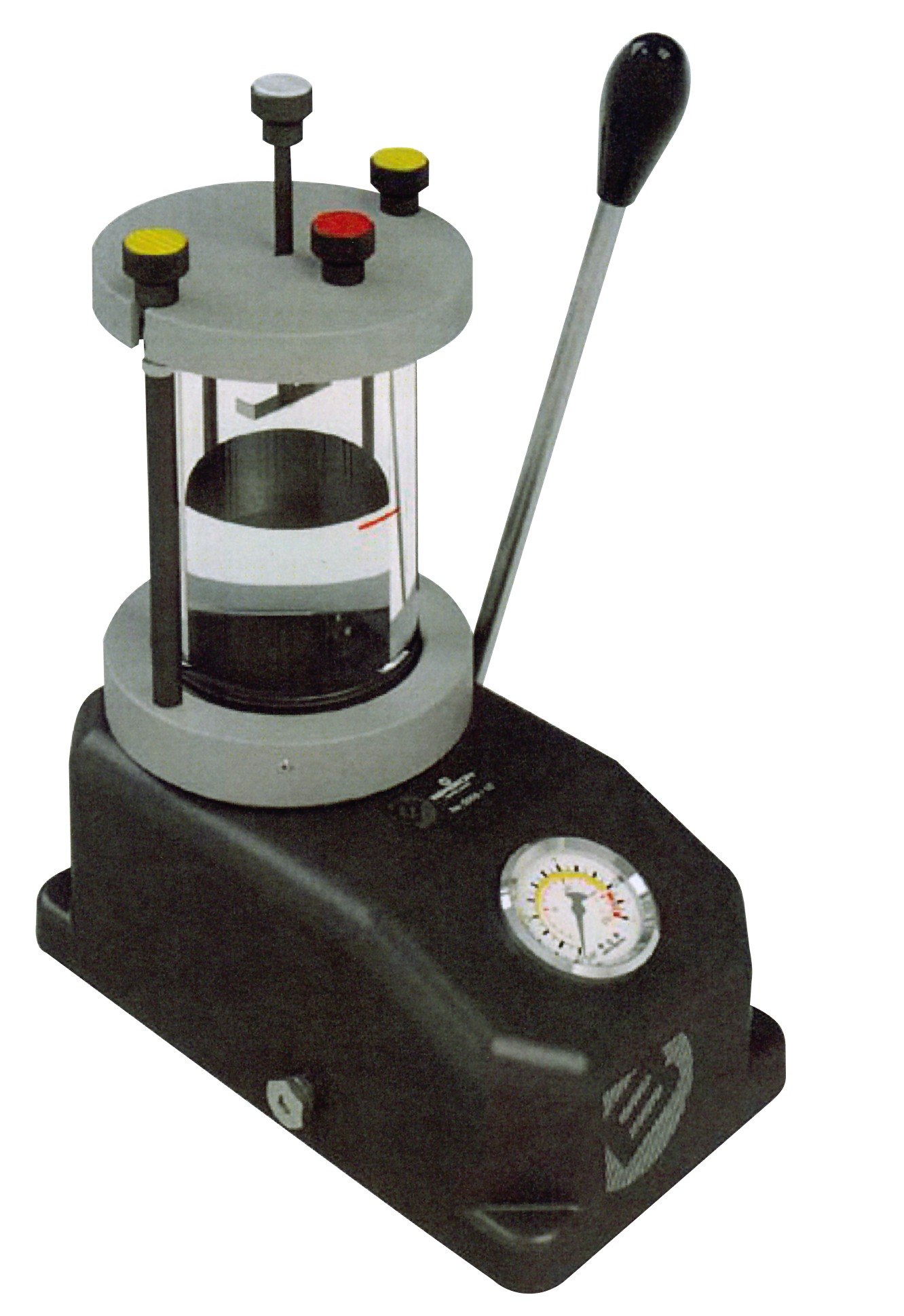

Pressure test with water

Max. overpressure: 11 bar Pressure build-up: by means of hand lever pump on the side Optional connection for compressor available. Immersion and removal of the watch to be tested: manual. The plexiglas cylinder is removable for filling or emptying. With suspension hook for 2 watches

The Diver 125 by Lititz Precision Products is a wet pressure tester to check the water resistance of wrist watches to a pressure of 125 atmospheres (bar) or 1250 meters below sea level. Extremely durable, ruggedly built, simple, maintenance-free design. Specifications - Rugged anodized aluminum construction - 2" (50 mm) chamber depth - 2.5" (63 mm) chamber diameter - Maximum pressure 125 BAR/ATM - Size 8" (20 cm) high, 11" (28 cm) wide, 4" (10 cm) deep - Weight 14 pounds (6.4 Kg) - Approved by Omega for unlimited parts accounts Comes with watch holder and water bottle

Water Resistance Tester for Watches (Wet Pressure Method) Our Flume WD tester reliably tests watch cases using the proven wet pressure principle (overpressure with water), identifying not only whether but also where a case is leaking—a decisive advantage over dry-only testers. Up to two watches can be tested simultaneously.Operating principle: The watch is secured above the water level while dry, and the cylinder is pressurized (up to 6 bar) using the hand lever. After a brief holding period, the watch is submerged and the pressure is released: If the case is leaking, the overpressure that entered during the holding period escapes as a continuous, visible stream of bubbles—allowing the crown, crystal gasket, or case back gasket to be directly identified as the leak source. Since the test is conducted under positive pressure, the risk of water ingress remains low.Readability & Handling: The clear, transparent cylinder provides an unobstructed view of the test specimen and the source of the bubble stream; the easy-to-read pressure gauge on the base precisely displays the applied test pressure at all times. The device operates purely mechanically: no electronics, no calibration required, ready for immediate use at any time, and can be disassembled without tools for cleaning.Your benefits at a glance:Precise localization of the leak instead of a simple pass/fail result Two tests in a single testing cycle—high throughputTransparent cylinder + easy-to-read pressure gauge for reliable assessmentRobust construction, maintenance- and calibration-freeTesting under realistic wearing conditions Excellent value for the pricePressure is built up manually via the hand lever as standard. Optionally, the device can be connected to an air pump; this requires only a suitable connecting hose (no electrical cable). Technical SpecificationsTest method: Wet pressure (overpressure with water)Test pressure range: 0.3–6.0 bar (approx. 6 ATM)Maximum cylinder pressure: 10 bar Capacity: 2 watches simultaneouslyMax. case diameter: 65 mmMax. case height: 72 mmCylinder: Outer diameter 80 mm / inner diameter 65 mm, height approx. 140 mm External pressure connection: 6NDimensions (L × W × H): approx. 240 × 145 × 275 mmWeight: approx. 3.4 kgMaterial: Aluminum base, transparent test cylinder

Max. overpressure: 125 bar. Ideal for individual test Very simple operation: The watch is placed in the stainless steel container, the container is completely filled with water, and the lid is locked. Pressure build-up: Using the handwheel on the device, a pressure of up to 125 bar can be built up by simply turning the crank. No compressor or foot pump required.
